Aluminum Composite Panels |
Offer for Aluminum Composite Panels |
OFFER

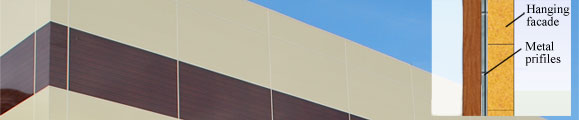

for delivery and installation of hanging facade
Composite Aluminum Panels
ACP (aluminum compact panel) |
 |
ACP(aluminum compact panel) |
4mm core/0.5mm Aluminum,Custom RAL, 2440x1220mm
|
32,00lv/m² |
Special aluminum profiles
|
elements connecting the panels
|
3,00 lv/m
|
Metal CD 1.2 profiles
|
made of galvanized black metal
with high hardness
|
2,30 lv/m
|
Super Clamps
|
directly to the display of wall
|
1,50/each
|
Stone Wool
|
heat stone wool
|
4,00 m²
|
Vapor/Water Cover
|
membrane for hydraulic isolation
|
2,00lv/m²
|
Installation
|
|
25,00lv/m²
|
For building facade with aluminum composite panels we apply special installation system that does not require preparation of pan or cutting material. The assembly of panels is directly with size if 1200 * 600mm on a light construction, which reduces cost and losses of more than 25 percent, and the time required for installation - 3 times. |
Price for installation of the facade with aluminum composite panels (per sq.m.): |
| |
Total m² cost installed(assuming 1.20x0.60mm panels) |
| |
materials |
56,00lv/m² |
| |
Labor |
25,00lv/m² |
| |
|
|
The prices are in Euro, not including VAT and transport from Varna to the site.
Delivery time up to 80 days from the day signing the contract.
|
|
Description
Product: |
exclusive product developed under the current requirements established specifically for outdoor or interior design |
Application: |
- Curtain walls
- Paneled buildings, roofs and tunnels
- Cover the columns and architectural details |
Material: |
composite panel type "sandwich" |
 |
Cuticle |
aluminum sheet with lasting color 27.6μm (PVDF) coverage |
Heart: |
non-toxic polyethylene core |
Back: |
aluminum sheet coated with polyester |
Security:
|
synthetic film to protect the surface during transportation and installation |
Standard
sizes: |
Length * |
Width |
Thickness |
| 2440 mm |
1220 mm |
3 mm |
| 2440 mm |
1220 mm |
4 mm |
Weight Panel : |
3mm=4.6kg/m² / 4mm=5.5kg/m² |
| Characteristics of the material: |
Strength : |
 |
environmentally friendly, lightweight material with great strength, extreme fluidity, high resistance to pressure, stroke and scratch |
Sustainability : |
quality of carbon-fluorine coating Hylar 5000 provides the external material influences, industrial pollution UV rays and corrosion |
 |
| |
Тhermal resistance range: -50Cº ÷ +80Cº |
Isolation : |
The material stops the spread of electromagnetic radiation
absorbed 9 times more vibrations than regular aluminum
sound isolation - 29 dB |
Fire resistance : |
Aluminum composite panel meets all modern requirements for fire:
Fire resistance, difficult flammable material class B1 |
Easy install
and support: |
 |
lightweight and flexible material allows entry of other details not necessary use of special tools, faster installation and replacement |
| |
easy maintenance - cleaned with a neutral detergent and water |
| |
|
|
|
Available colors: |
 |
Price per sq. m: |
43 lv/м² |
43 lv/м² |
48 lv/м² |
| Note: Price does not include shipping costs and installation |
|
Please send your request to e-mail: info@expirian.net
For more information: +359 (52) 600 405 |
 |
|
|
|
